常用数控系统程序举例-FANUC 18iT

1. 零件图
2. 加工程序清单

N10T0101

N20M03S100

N30G01X75.Z0.F100.M8

N50G71U2.R0.5

N60G71P70Q140U0.4W0.2F0.4

N70G0X20.Z0.

N80G01X30.Z-5.

Z-34.

N90G02X38.Z-38.R4.

N100G01Z-51.

N110X50.

N120G01Z-70.

N130G01X60.

N140G01Z-90.

N150G00X100.Z100.T0100

N160T0202

N170G70P70Q140

N180G0Z200T0200

N181T0303

N182G0X27.Z2.

N182G76P051060Q100200

N183G76X27.Z-34.P1083Q300F1.5

N184G0X150.Z200.T0300

N185T0404

N186G0X0Z5.

N187G01Z-60.

N188G01Z5.

N194G0X150.Z200.

N195M05

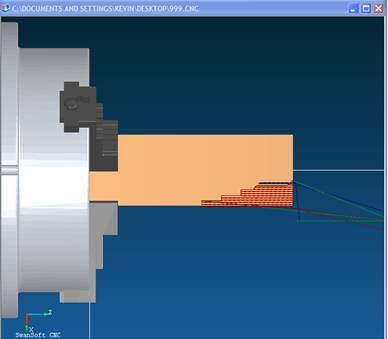

3. 三维加工视窗
4. 二维加工轨迹线
