Common NC Program-DASEN 3iT

1. Machining program listing

N1 T0101

N2 G00 X80 Z100

M03 S400

N3 G00 X42 Z3

N4 G71U1R1

G71P8Q19U0.3F100

N8 G00 X10

N9 G01 X20 Z-2 F80

N10 Z-8

N11 G02 X28 Z-12 R4

N12 G01 Z-17

N13 U-10 W-5

N14 W-8

N15 U8.66 W-2.5

N16 Z-37.5

N17 G02 X30.66 W-14 R10

N18 G01 W-10

N19 X40

N20 G00 G40 X80 Z100

N21 M30

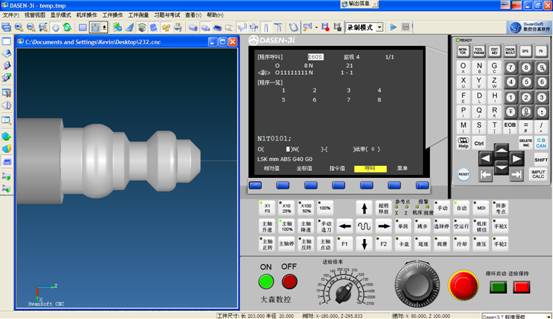

2. 3DM machining window
3. Two-dimensional machining trochoid
